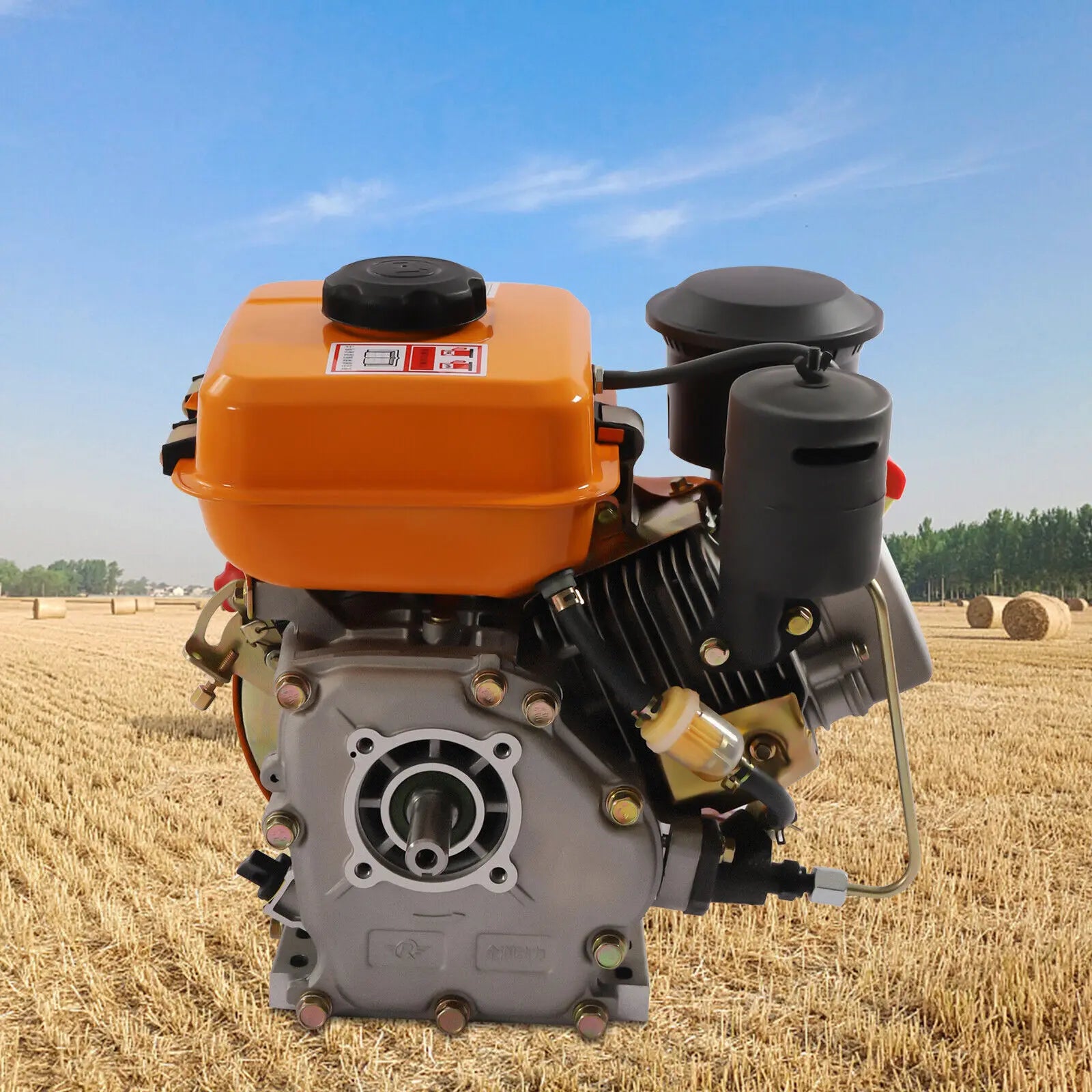

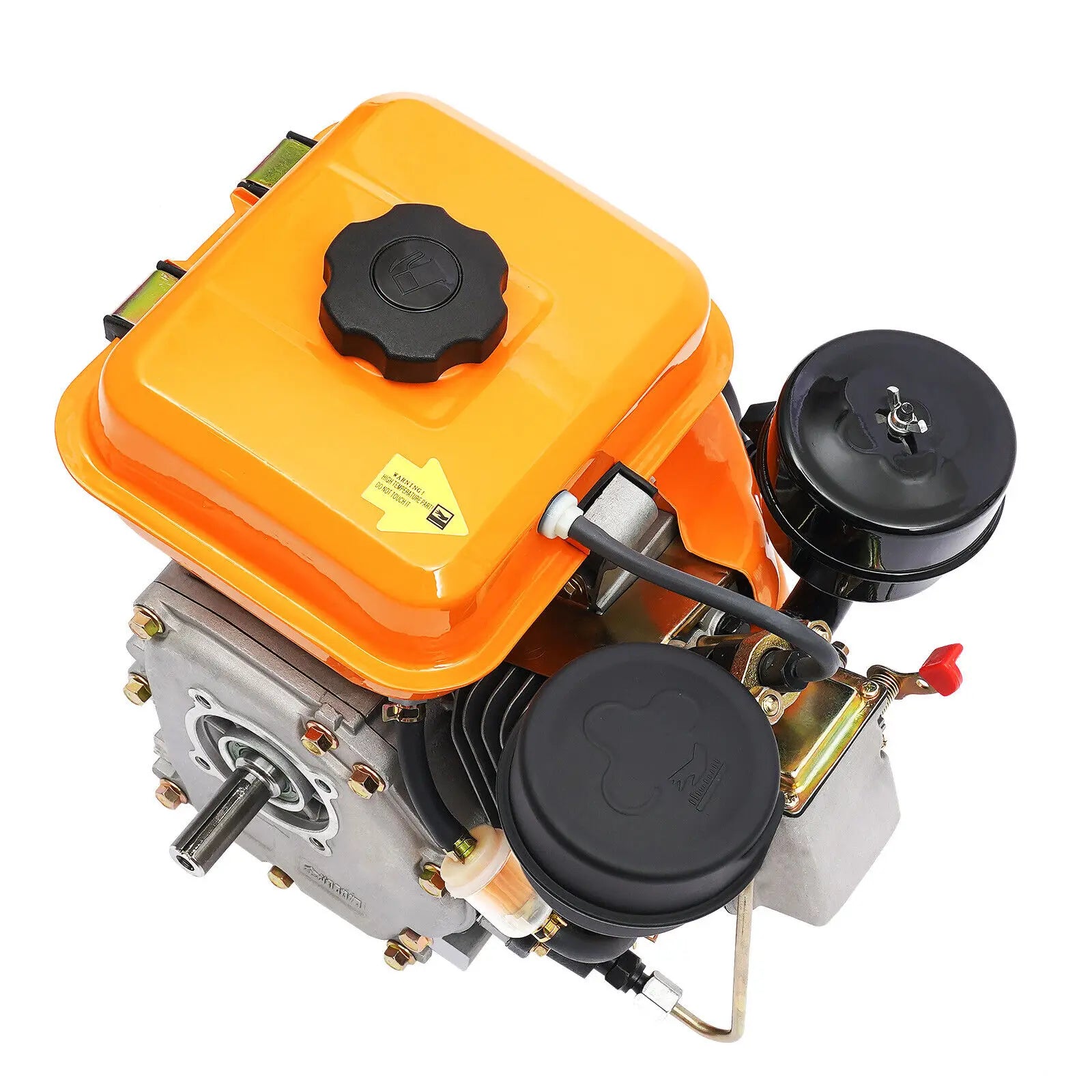

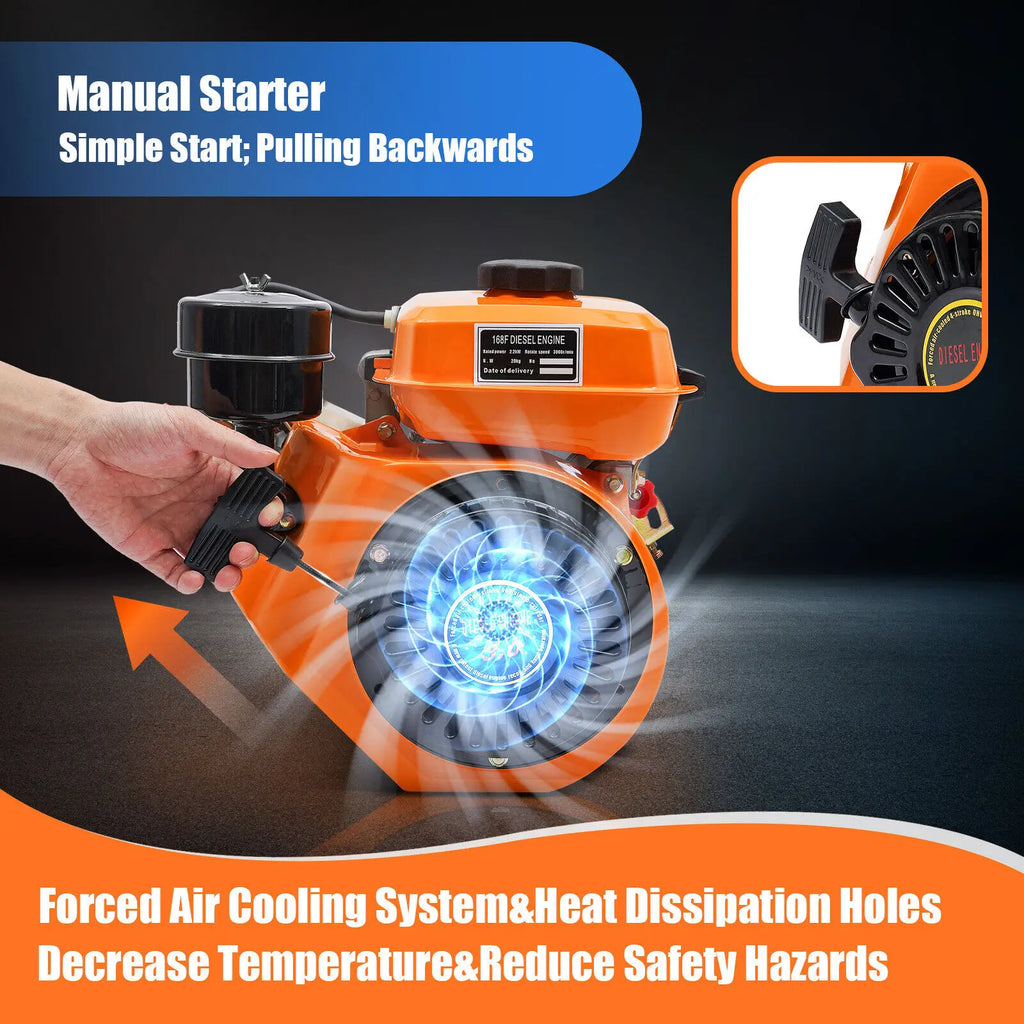

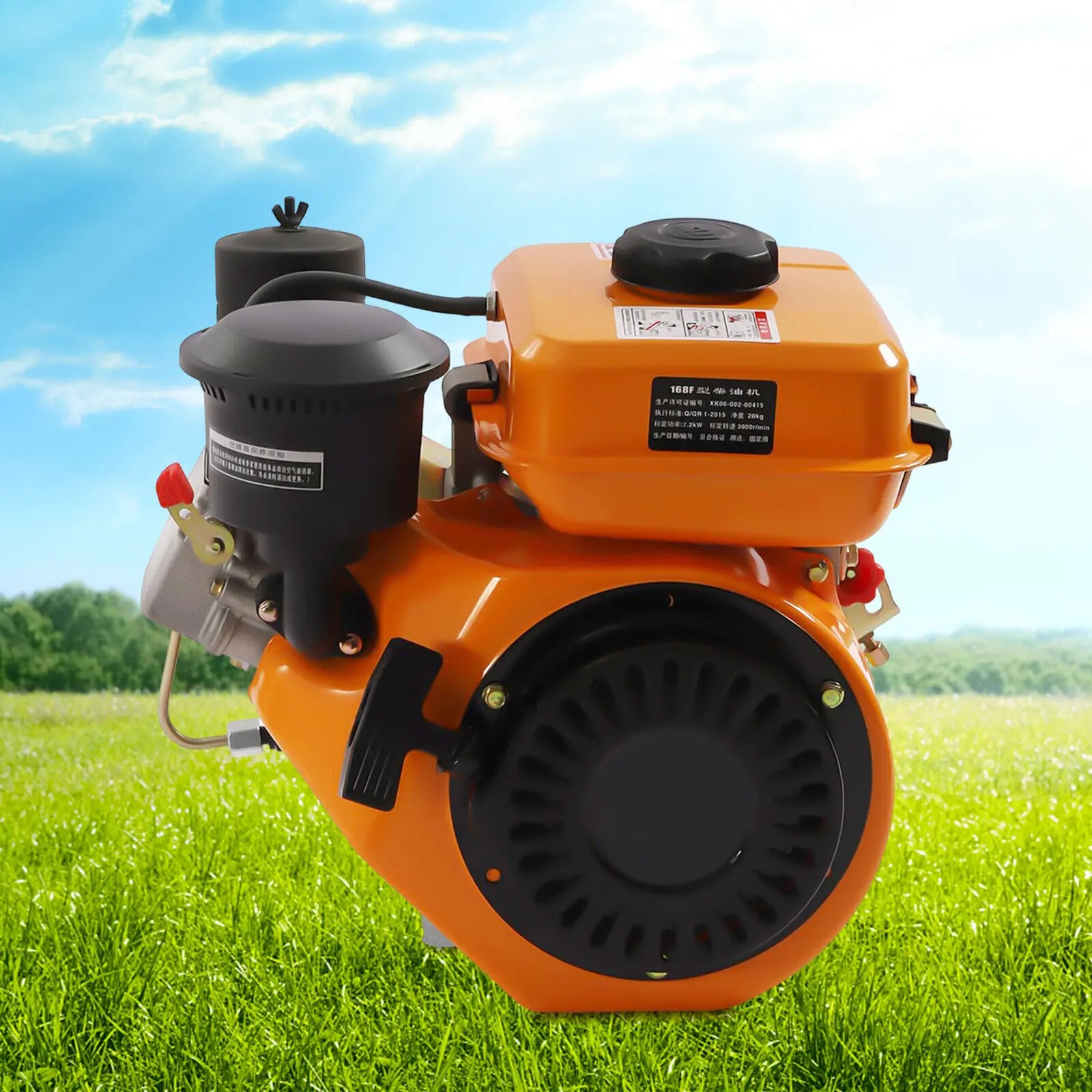

196cc 4Stroke Diesel Engine Single Cylinder Air-cooling Manual Start Small Motor
196cc 4Stroke Diesel Engine Single Cylinder Air-cooling Manual Start Small Motor
Description
SPECIFICATIONS
Brand Name: NONE
Hign-concerned Chemical: None
Origin: Mainland China
Specification:

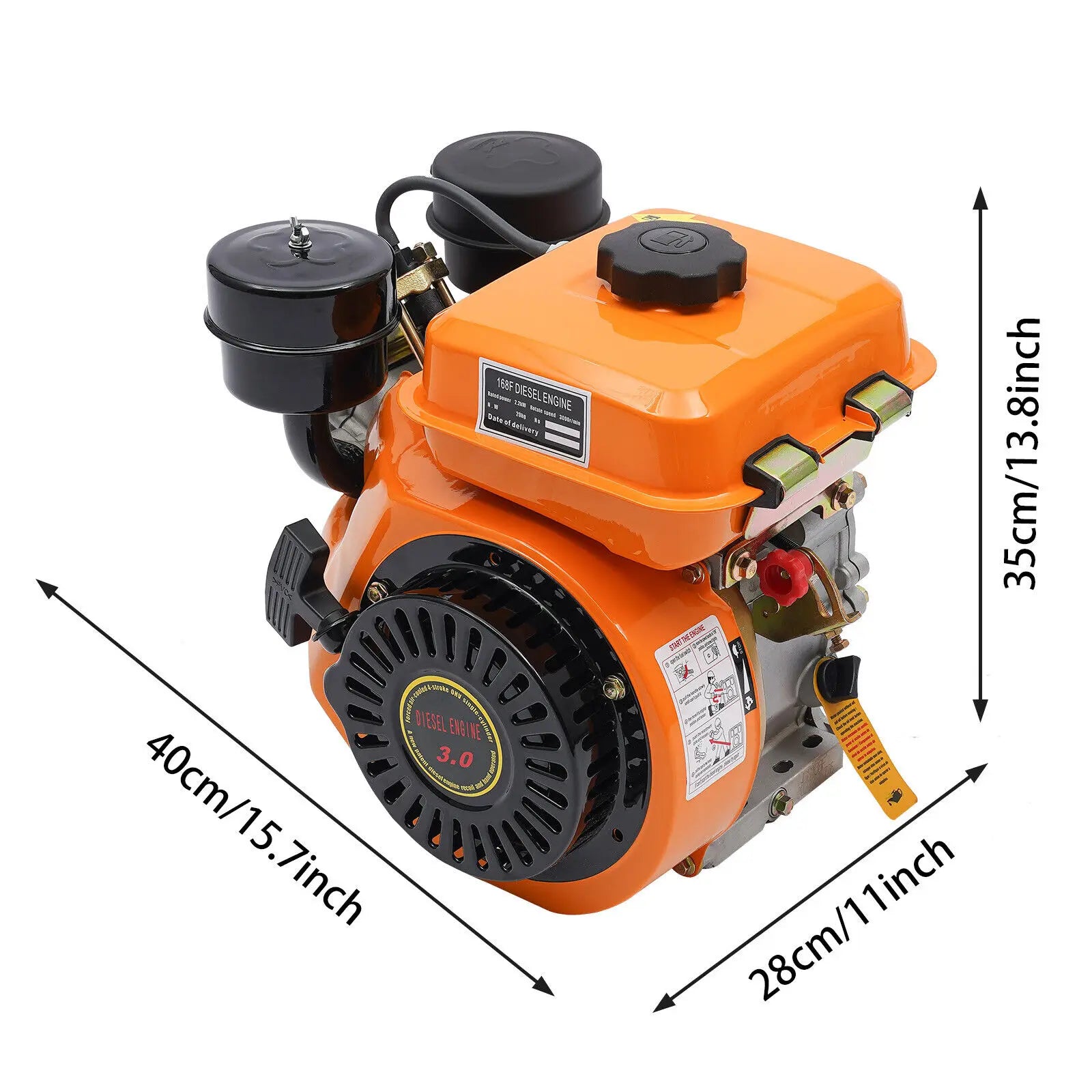

Model: 168F Type:, air-cooled diesel engine Dimensions: 395*305*361mm (15.55*12.01*14.21 inches) Product weight: 20kg (44.09 pounds) Shell material: aluminum Ignition method: compression ignition Displacement (cc): 196cc Speed (rpm): 3000 rpm Maximum output (kw): 2.2KW Start method: manual start Fuel tank capacity (L): 3L Engine oil capacity: 0.7L Net torque: 8N.M/2880rpm Number of cylinders: single cylinder Compression ratio: 22:1 Bore size (mm): 68*54mm (2.68*2.13 inches) Fuel: 0# diesel Fuel consumption rate (g / kw.h): 310g / kw.h Starting system: hand recoil Shaft type: flat key Shaft diameter: 2.0cm (0.787 inch) Keyway: 5mm (0.197 inch) Shaft length: 20*53mm (0.787*2.09 inches) Shaft inner diameter thread size: M8*1.25mm (0.049 inch) Oil system: splash Engine cooling method: air cooling
|
Care
To maintain the beauty and integrity of your purchase, we recommend treating it with care. Simple maintenance practices, such as gentle washing and proper storage, can effectively preserve the longevity of your favorites. We encourage you to refer to the care instructions included with each item, designed to help you keep your purchase in top condition.
Design
Our dedication to excellence extends beyond materials; it encompasses the artistry and craftsmanship illustrated in every piece we create.
